Introduction

The SBC (Single Board Computer) kits from PHYTEC represent an ideal basis for testing and the first design steps with phyCAM camera modules. The kit forms the starting point for your development project. The kit can be used to develop and test application software before your own adapted hardware is available. It is also an optimal platform for testing special hardware extensions before you create a complex application board.

This optional step secures your design while at the same time providing software developers with an opportunity to adapt newly added hardware components. Extensions can be easily connected via the extension interfaces of the baseboards included in the kit. In the simplest case, a freely wired hole grid structure is sufficient.

For certain combinations of controller modules, camera modules, and lenses, we offer ready-made kits. If the combination you require is not available, we recommend that you first put a similarly equipped kit into operation and then connect the camera you require to the kit.

We will be happy to advise you on the best way to carry out your project.

SBC Kit Start-Up

Before you try out the camera and image processing functions, we recommend that you first familiarize yourself with the basic functions of the kit and the associated development environment. Each kit contains a Quick Start Guide that guides you through installing the software on your development PC and configuring the hardware.

Before You Start

The following components are required for the camera setup:

• PHYTEC SBC-Kit with power supply and serial connection (RS232 or USB)
• Camera module with camera cable, lens holder, and lens
• Network cable
• HDMI monitor with an HDMI cable (not included in the kit)

If you have ordered the corresponding kit as an Embedded Imaging Kit, all hardware components required for installation are already included.

As a rule, both the extension of an existing kit by one camera and the extension of an existing video kit by additional cameras is possible without problems with an existing phyCAM interface.

Before connecting and starting up the camera, carry out the first steps of the "Quick Start Instructions" of the respective kit. To start the scripts on the module, follow the steps to establish a serial connection with the module. You can use the terminal program suggested in the manual or your own terminal program.

To transfer saved image files to a PC (host) via Ethernet, follow the steps to establish an FTP connection. You can use the FTP server suggested in the manual or your own FTP server.

Connecting and Starting the Camera

When you purchase an SBC kit, you will receive the PHYTEC guarantee. If you encounter any difficulties during installation, PHYTEC support will help you!

Overview

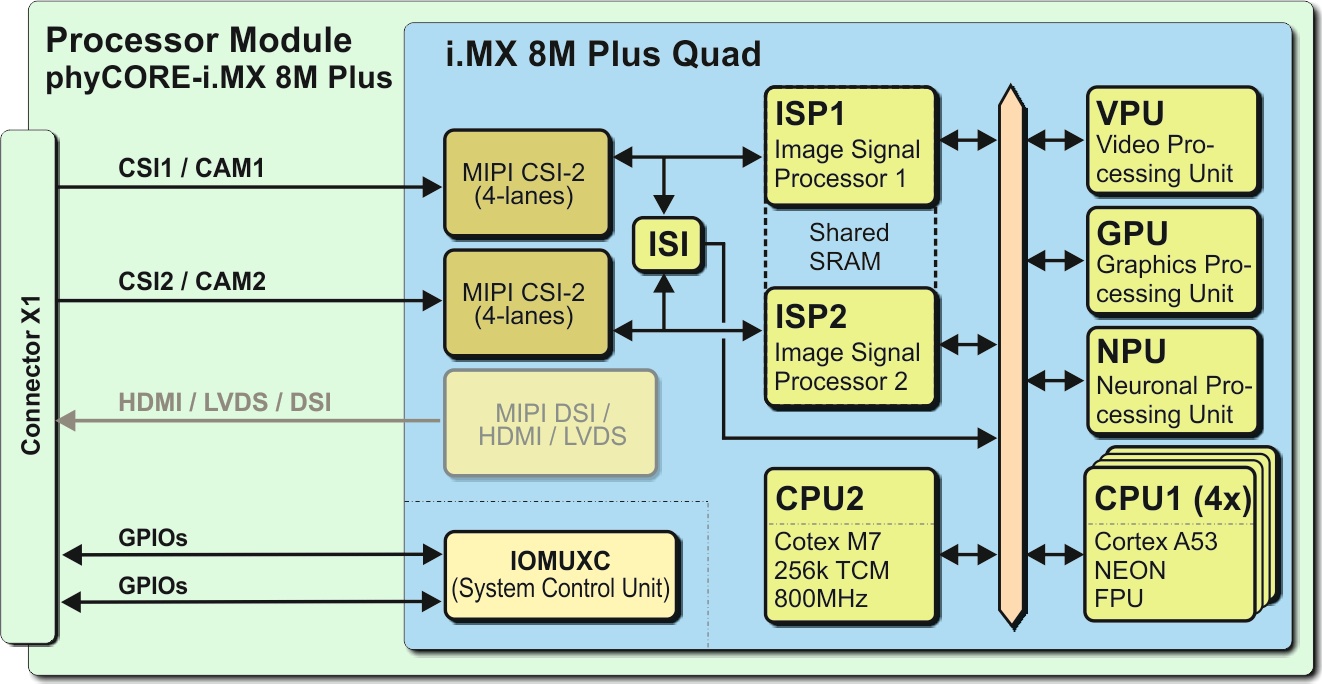

The i.MX 8M Plus Microcontroller supports two MIPI CSI-2 camera interfaces:

On the phyCORE-i.MX 8M Plus, the CSI1/CAM1 and CSI2/CM2 camera paths go out as CSI-2 MIPI signal:

On PHYTEC or customer carrier boards, the interfaces are led out as phyCAM-M. For more information on phyCAM-M, see the phyCAM-Manuals on our website.

On the phyBOARD-Pollux baseboard, the camera interfaces are led out as phyCAM-M (MIPI CSI-2) interfaces. Here you can connect different phyCAM-M camera modules:

The BSP shipped with the Kit includes the software drivers for the supported phyCAM-M camera modules. The drivers are compatible with v4l2. GStreamer scripts are also included for the evaluation of the camera modules. If you need the camera interface to connect to your own camera module, an adapter to phyCAM-M is necessary.

Camera Connectors on the Pollux - Carrier Boards

The development kits for the i.MX 8M Plus phyBOARD-Pollux contains:

• one carrier board (phyBOARD-Pollux)
• one phyCORE-i.MX 8M Plus module SOM (phyCORE-i.MX 8M Plus)

The phyCORE-i.MX 8M Plus is plugged into the carrier board.

On the phyBOARD-Pollux baseboard (PBA-C-17), we convert the MIPI CSI-2 interfaces into a phyCAM-M standard.

• phyCAM-M camera interface 1 (support on connector X11)

• phyCAM-M camera interface 2 (support on connector X12)

Connecting the phyCAM-M Camera

A type-A FFC cable (stripped and reinforced on the same side) is supplied with the kit. This ensures the correct signal assignment between the camera and the baseboard in the kit.

The position of the camera socket on the baseboard can be found in the hardware manual of the kit. Parallel to the connector designation (e.g. X100), some basic boards also have "CAM" printed on the board. The phyCAM-M interface is a 30-pin FFC socket, which can be installed standing or lying on the board.

The FFC cable is plugged in precisely the same way as the cable is plugged into the camera FFC socket.

Open the lock of the 30-pin FFC connector on the camera by lifting the lock upwards.

1. Plug the 30-pin FFC cable into the FFC socket with the contact surfaces facing downwards until you feel the stop. The reinforcement of the FFC cable (usually highlighted in color) points to the bracket of the socket.
2. Lock the FFC socket by carefully pressing it down on the bracket.

Connecting the phyCAM-L Camera

For this, you need the adapter board AZ-018, one phyCAM-M cable (30 pol. FFC, type-A), and one coax cable with the UMCC connector on both sides.

First, connect the FFC cable to the Baseboard. The position of the camera socket on the baseboard can be found in the hardware manual of the kit. Parallel to the connector designation (e.g. X100), some basic boards also have "CAM" printed on the board. The phyCAM-M interface is a 30-pin FFC socket, which can be installed standing or lying on the board.

The FFC cable is plugged in precisely the same way as the cable is plugged into the adapter board VZ-018 FFC socket. Now connect the coax cable on the camera and the adapter board VZ-018 (Port_0). Plug the cable solidly on the UMCC connector.

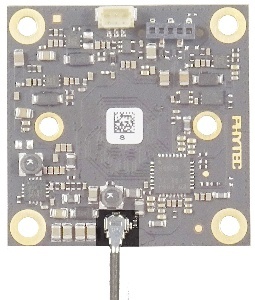

UMCC Connector

The complete connection: phyCAM-L camera -> Adapter board -> Pollux board should now look like this.

Supported Camera Boards (YOCTO Linux PD21.1.1 and higher)

The cameras and the camera interface are supported as sub-devices. To configure the v4l2 framework is the handler "media-ctl" used, see Configure Camera and Controller Camera Interface with "media-ctl"

Supported Camera Types in Standard Vision Image (phytec-vision-image-phyboard-pollux-imx8mp-2)

Per default the following Camera types are supported in the image:

• VM-016-BW-M series (VM-016-BW-M, VM-016-BW-M-M12, VM-016-BW-M-H, …) based on camera sensor “AR0144”
• VM-016-COL-M series (VM-016-COL-M, VM-016-COL-M-M12, VM-016-COL-M-H, …) based on camera sensor “AR0144”

After login, you can start working with the Demo Scripts.

Change the Camera Types or Connected Port in Standard Vision Image (phytec-vision-image-phyboard-pollux-imx8mp-2)

The following camera types are interchangeable in the image:

• VM-016-BW-M series (VM-016-BW-M, VM-016-BW-M-M12, VM-016-BW-M-H, …) based on camera sensor “AR0144”
• VM-016-COL-M series (VM-016-COL-M, VM-016-COL-M-M12, VM-016-COL-M-H, …) based on camera sensor “AR0144"
• VM-116-BW-M series (VM-116-BW-M, VM-116-BW-M-M12, …) based on camera sensor “AR0144”
• VM-116-COL-M series (VM-116-COL-M, VM-116-COL-M-M12, …) based on camera sensor “AR0144”
• VM-016-BW-L series (VM-016-BW-L, VM-016-BW-L-M12, VM-016-BW-L-H, …) based on camera sensor “AR0144”
• VM-016-COL-L series (VM-016-COL-L, VM-016-COL-L-M12, VM-016-COL-L-H, …) based on camera sensor “AR0144”
• VM-017-BW-M series (VM-017-BW-M, VM-017-BW-M-M12, VM-017-BW-M-H, …) based on camera sensor “AR052x” (adapted device tree and driver necessary)
• VM-017-COL-M series (VM-017-COL-M, VM-017-COL-M-M12, VM-017-COL-M-H, …) based on camera sensor “AR052x” (adapted device tree and driver necessary)
• VM-117-BW-M series (VM-117-BW-M, VM-117-BW-M-M12, …) based on camera sensor “AR052x” (adapted device tree and driver necessary)
• VM-117-COL-M series (VM-117-COL-M, VM-117-COL-M-M12, …) based on camera sensor “AR052x” (adapted device tree and driver necessary)
• VM-017-BW-L series (VM-017-BW-L, VM-017-BW-L-M12, VM-017-BW-L-H, …) based on camera sensor “AR052x” (note: in progress)
• VM-017-COL-L series (VM-017-COL-L, VM-017-COL-L-M12, VM-017-COL-L-H, …) based on camera sensor “AR052x” (note: in progress)

To register the cameras you need an adapted device tree.

How to Change the Device Tree

• During the boot sequence, press a key (use a terminal program e.g. "Putty") to arrive at the bootloader
• u-boot=> edit fdt_file
• Edit: <type here your device tree> (e.g. "imx8mp-phyboard-pollux-rdk-vm016-csi2.dtb")

PHYTEC supports same device trees, see the right device tree in following list:

How to Activate the VM-017/VM-117 Camera Series

Please follow the instructions of “README.md” from PHYTEC FTP Server:  https://download.phytec.de/ImageProcessing/phyBOARD-Pollux-i.MX8MP_linux_PD21.1.1/VM-017/

After reboot and login, the AR052x camera driver is present. Now the VM-0x17 driver (AR052x) is ready for use and you can start working with the Demo Scripts. For the VM-017-_-L series follow the instructions of “README-VM-017-L.txt”.

Supported Camera Boards (YOCTO Linux PD22.1.0 and higher)

The cameras and the camera interface are supported as sub-devices. To configure the v4l2 framework is the handler "media-ctl" used, see Configure Camera and Controller Camera Interface with "media-ctl"

The following camera types are interchangeable in the image:

• VM-016-BW-M series (VM-016-BW-M, VM-016-BW-M-M12, VM-016-BW-M-H, …) based on camera sensor “AR0144”
• VM-016-COL-M series (VM-016-COL-M, VM-016-COL-M-M12, VM-016-COL-M-H, …) based on camera sensor “AR0144"
• VM-116-BW-M series (VM-116-BW-M, VM-116-BW-M-M12, …) based on camera sensor “AR0144”
• VM-116-COL-M series (VM-116-COL-M, VM-116-COL-M-M12, …) based on camera sensor “AR0144”
• VM-016-BW-L series (VM-016-BW-L, VM-016-BW-L-M12, VM-016-BW-L-H, …) based on camera sensor “AR0144”
• VM-016-COL-L series (VM-016-COL-L, VM-016-COL-L-M12, VM-016-COL-L-H, …) based on camera sensor “AR0144”
• VM-017-BW-M series (VM-017-BW-M, VM-017-BW-M-M12, VM-017-BW-M-H, …) based on camera sensor “AR052x”

• VM-017-COL-M series (VM-017-COL-M, VM-017-COL-M-M12, VM-017-COL-M-H, …) based on camera sensor “AR052x”
• VM-117-BW-M series (VM-117-BW-M, VM-117-BW-M-M12, …) based on camera sensor “AR052x”
• VM-117-COL-M series (VM-117-COL-M, VM-117-COL-M-M12, …) based on camera sensor “AR052x”
• VM-017-BW-L series (VM-017-BW-L, VM-017-BW-L-M12, VM-017-BW-L-H, …) based on camera sensor “AR052x”
• VM-017-COL-L series (VM-017-COL-L, VM-017-COL-L-M12, VM-017-COL-L-H, …) based on camera sensor “AR052x”

To register the cameras you need an adapted overlay device tree.

Change the Camera Types and Connected Port in Standard Vision Image (phytec-vision-image-phyboard-pollux-imx8mp-2)

How to Change the Boot Environment to activate the Camera, the Camera Port, and the Way through the i.MX8MP (ISI or ISP)

• boot the Linux system and login

• change into path /boot/
• use the "bootenv.txt" file to change the camera type and the path through the i.MX 8M Plus (ISI or ISP)

• add the wished Camera, the Camera Port, and the Way through the i.MX8MP, for example:

  • VM-016-COL/BW-M at camera port1 through ISI
  • add the following overlays in "bootenv.txt"
    • overlays=imx8mp... [imx8mp-isi-csi1.dtbo imx8mp-vm016-csi1.dtbo]

• reboot the system

PHYTEC supports same device trees, see the right device tree in following list:

Demo Scripts

If you want to see the live images, we recommend using an HDMI monitor on the Pollux Board.

There are 3 subdirectories with demo scripts for the cameras:

• GStreamer-examples
• v4l2_c-examples
• OpenCV-examples

GStreamer Scripts

After login, change into the directory:  \gstreamer-examples\..

cd gstreamer_examples

then press ENTER.

Now you can start working with the GStreamer demo scripts.

Start the scripts with the word phrase "col" or "bw" for "_" depending on the connected camera color type.

• func.sh: scripts detect the camera type and define the parameter for the scripts
• remove_qt_demo.sh: scripts remove the qt-demo from autostart
• turn_off_on_wayland.sh: scripts turn on/off if Wayland necessary or not
• ar0144.conf: configurations of VM-x16 camera sensor ar0144
• ar0521.conf: configurations of VM-x17 camera sensor ar0521

Subdirectories:

• isi_gstreamer-examples
  • _cam-fbdev_1280x720.sh: scripts show a live stream on display
  • _cam-save_jpg_full_res.sh: scripts save a JPG File in this directory
  • _cam-save_raw_full_res.sh: scripts save a RAW File in this directory
  • more_ar0144_scripts: contain more scripts for the VM-016 camera series (v4l-ctrl_ar0144.txt list the v4l2-controls for this camera)
  • more_ar052x_scripts: contain more scripts for the VM-017/117 camera series (v4l-ctrl_ar052x.txt list the v4l2-controls for this camera)
•  isp_gstreamer-examples (since PD22.1.0)

  • _cam-fbdev_1280x720.sh: scripts show a live stream on display
  • _cam-save_jpg_full_res.sh: scripts save a JPG File in this directory
  • _cam-save_raw_full_res.sh: scripts save a RAW File in this directory
  • more_ar0144_scripts: contain more scripts for the VM-016 camera series (v4l-ctrl_ar0144.txt list the v4l2-controls for this camera)
  • more_ar052x_scripts: contain more scripts for the VM-017/117 camera series (v4l-ctrl_ar052x.txt list the v4l2-controls for this camera)
  • gst-python_demo: contain a python script to show the work of AEC, AWB and Dewarp via i.MX8MP-ISP
• vpu_enc_dec_scripts: contain scripts how use the vpu-encoder (e.g network streaming or save H.264 streams)
• tools: contain scripts to get and set the camera register direct via i2c access
• phytec_usb_cam: scripts for use the PHYTEC USB-cameras

All camera/video components get a separate "dev/v4l-subdev[x]" device.

The v4l2 capabilities are shown if you type: "v4l2-ctl -d [device] -L" e.g. "v4l2-ctl -d /dev/v4l-subdev1 -L".

For the first use, the camera and controller-camera interface must be configured with the tool v4l2-ctl. See chapter 5.

Scripts to Call C/C++ Files Based on v4l2 Interface

After login, change into the directory:  \v4l2_c-examples\..
cd v4l2_c-examples <ENTER>.

Now you can start working with the demo scripts.

Start the scripts with the phrase "isi" or "isp" depending on the activated data path in the i.MX8 M Plus.

• isi_col/bw_full_save-raw: scripts save a raw image from VM-016 in full resolution (8/10 and 12-Bit Formats are possible)

• isp_col/bw_full_save-raw: scripts save a raw image from VM-016 in full resolution (8-Bit YUV-Format)

To save the image, we use the program Yavta. Yavta stands for "Yet Another V4L2 Test Application". This is a test application based on the V4L2 Linux interface.

Another way to use it in your C-program is the direct access call to the v4l2 interface. For example:

v4l2-ctl -d0 --stream-mmap --stream-count 1 --stream-to=raw_image1.raw

For the first use, the camera and controller camera interface must be configured with the tool v4l2-ctl. See Scripts to Call C/C++ files Based on v4l2 Interface.

OpenCV Scripts

PHYTEC i.MX 8M Plus BSP PD22.1.0 includes OpenCV4.5.  To use OpenCV with image output, we use window manager Wayland. PHYTEC tested OpenCV with PYTHON programming language.  Examples of scripts can be found in the path “opencv-examples”:

• /opencv-examples/python/python3 isi_phycam_video_v4l2.py: show the live image from the camera via ISI
• /opencv-examples/python/python3 isp_phycam_video_v4l2.py: show the live image from the camera vis ISP
• /opencv-examples/python/python3 isi_face_detection.py: small application to detect faces via ISI
• /opencv-examples/python/python3 isp_face_detection.py: small application to detect faces via ISP

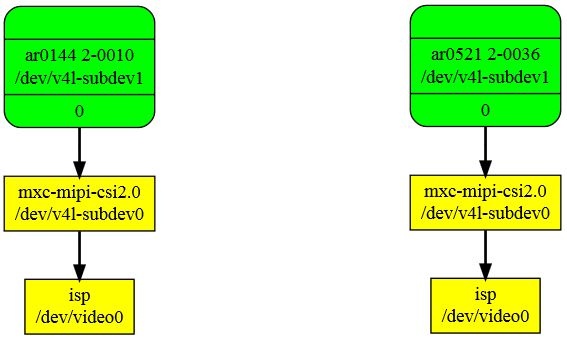

Configure Camera and Controller Camera Interface with “media-ctl”

Modern System-on-Chip (SoC) devices support a wide range of functionality in the way of internal hardware blocks which has resulted in a variety of ways to interconnect functions within the SoC that alter the V4L device content.

The Media Controller kernel API has been designed to expose detailed information about media devices and capture devices to userspace in a way that allows them to be interconnected in dynamic and complex ways at runtime.

Media controller devices expose entities to the media controller framework. Each entity has one or more source pads and one or more sink pads. You use the media controller kernel API (ie via media-ctl) to query entities, link source pads to sink pads, and set formats of pads.

We use media-ctl to set:

• the desired resolution and color format of the camera sensor
• the fitting resolution and color format in the CSI interface (controller-camera-interface)
• the way (and/or preprocessing) through the different hardware blocks in the controller
• the resulting camera stream is made available as “/dev/videox” device

These settings are necessary:

• once after restarting the system and using the camera for the first time
• set a new resolution, color format, or bit-depth
• set a new path through the hardware blocks

Path via ISI at Connected phyCAM-M Camera on Port_0

The following entities are present at the i.MX 8M Plus Image (check with “media-ctl –p”) for phyCAM-M via ISI:

• entity 1: mxc_isi.0 (16 pads, 2 links)

                        pad0: Sink

                        ...

                        pad11: Sink

                        pad12: Source

                        ...

                        pad14: Source

                        pad15: Sink

• entity 18: mxc_isi.0.capture (1 pad, 1 link)

                        pad0: Sink

• entity 22: mxc-mipi-csi2.0 (8 pads, 2 links)

                        pad0: Sink

                        ...

                        pad3: Sink

                        pad4: Source

                        ...

                        pad7: Source

• entity 31: ar0144 2-0010 (1 pad, 1 link)                         #(depend on selected camera)

                        pad0: Source

To set the media-ctl, we use the following points in our demo script:

• media-ctl –r: reset all links to inactive
• media-ctl –l: setup the links between the hardware blocks
• media-ctl –V: formats the hardware blocks

For example, we will set the VM-016-COL-M (AR0144) with full Resolution from CSI Port to a /dev/videox device via ISI.

First, we set the links:

media-ctl -r

media-ctl -l "'ar0144 2-0010':0->'mxc-mipi-csi2.0':0[1]"

media-ctl -l "'mxc-mipi-csi2.0':4->'csi':0[1]"

media-ctl -l "'mxc_isi.0':12->'mxc_isi.0.capture':0[1]"

#           Camera -> mxc-mipi-csi2.0 -> mxc_isi.0 -> mxc_isi.0.capture (/dev/videoX)

Then, we format the hardware blocks:

media-ctl -V "'ar0144 2-0010':0 [fmt:SGRBG8_1X8/1280x800 (0,4)/1280x800]"

media-ctl -V "'mxc-mipi-csi2.0':4 [fmt:SGRBG8_1X8/1280x800]"

media-ctl -V "'mxc_isi.0':12 [fmt:SGRBG8_1X8/1280x800 field:none]"

Check the settings with “media-ctl –p”:

Now the video stream is present at “dev/video0” device. The camera is ready for access.

Path via ISI at connected phyCAM-L camera on Port_0

The following entities are present at the i.MX 8M Plus Image (check with “media-ctl –p”) for phyCAM-M via ISI:

• entity 1: mxc_isi.0 (16 pads, 2 links)

                        pad0: Sink

                        ...

                        pad11: Sink

                        pad12: Source

                        ...

                        pad14: Source

                        pad15: Sink

• entity 18: mxc_isi.0.capture (1 pad, 1 link)

                        pad0: Sink

• entity 22: mxc-mipi-csi2.0 (8 pads, 2 links)

                        pad0: Sink

                        ...

                        pad3: Sink

                        pad4: Source

                        ...

                        pad7: Source

• entity 31: ds90ub954 2-003d (3 pads, 2 links)

                        pad0: Sink

                        pad1: Sink

                        pad2: Source

• entity 35: ds90ub953 7-0018 (2 pads, 2 links)

                        pad0: Sink

                        pad1: Source

• entity 40: ar0144 2-0010 (1 pad, 1 link)                         #(depend on selected camera)

                        pad0: Source

To set the media-ctl, we use the following points in our demo script:

• media-ctl –r: reset all links to inactive
• media-ctl –l: setup the links between the hardware blocks
• media-ctl –V: formats the hardware blocks

For example, we will set the VM-016-COL-L (AR0144) with full Resolution from CSI Port to a /dev/videox device via ISI.

First, we set the links:

media-ctl -r

media-ctl -l "'ar0144 2-0010':0->'ds90ub953 7-0018':0[1]"

media-ctl -l "'ds90ub953 7-0018':1->'ds90ub954 2-003d':0[1]"

media-ctl -l "'ds90ub954 2-003d':2->'mxc-mipi-csi2.0':0[1]"

media-ctl -l "'mxc-mipi-csi2.0':4->'csi':0[1]"

media-ctl -l "'mxc_isi.0':12->'mxc_isi.0.capture':0[1]"

#         Camera -> DS90ub953 -> DS90ub954 ->mxc_mipi_csis2.0 -> CSI -> CSI capture (/dev/videoX)

Then, we format the hardware blocks:

media-ctl -V "'ar0144 2-0010':0 [fmt:SGRBG8_1X8/1280x800 (0,4)/1280x800]"

media-ctl -V "'mxc-mipi-csi2.0':4 [fmt:SGRBG8_1X8/1280x800]"

media-ctl -V "'mxc_isi.0':12 [fmt:SGRBG8_1X8/1280x800 field:none]"

Check the settings with “media-ctl –p”:

Now the video stream is present on “dev/video0” device. The camera is ready for access.

Path via ISP at connected phyCAM-M camera on Port_0

The following entities are present at the i.MX 8M Plus Image (check with “media-ctl –p”) for phyCAM-M via ISP:

• entity 1: mxc-mipi-csi2.0 (8 pads, 1 links)

                        pad0: Sink

                        ...

                        pad3: Sink

                        pad4: Source

                        ...

                        pad7: Source

• entity 10: ar0144 2-0010 (1 pad, 1 link)                         #(depend on selected camera)

                        pad0: Source

In this case, the media-ctl is pre-configured. Set is not necessary:

Check the settings with “media-ctl –p”:

Now the video stream is present on “dev/video0” device. The camera is ready for access.

The use of the ISP (Image Signal Processor) of the i.MX8M Plus is described in L-1036e.A0 Using the ISPs on the phyBOARD-Pollux i.MX 8M Plus or L-1036d.A0 Verwendung des ISPs am phyBOARD-Pollux i.MX 8M Plus

Path via ISP at connected phyCAM-L camera on Port_0

The following entities are present at the i.MX 8M Plus Image (check with “media-ctl –p”) for phyCAM-M via ISI:

• entity 1: mxc-mipi-csi2.0 (8 pads, 1 links)

                        pad0: Sink

                        ...

                        pad3: Sink

                        pad4: Source

                        ...

                        pad7: Source

• entity 10: ds90ub954 2-003d (3 pads, 2 links)

                        pad0: Sink

                        pad1: Sink

                        pad2: Source

• entity 14: ds90ub953 7-0018 (2 pads, 2 links)

                        pad0: Sink

                        pad1: Source

• entity 19: ar0144 7-0010 (1 pad, 1 link)                         #(depend on selected camera)

                        pad0: Source

In this case, the media-ctl is pre-configured. Set is only for set serializer <-> deserializer necessary:

For example, we will set the VM-016-COL-L (AR0144) with full Resolution from CSI Port to a /dev/videox device via ISP.

Set the link:

media-ctl -l "'ds90ub953 7-0018':1->'ds90ub954 2-003d':0[1]"

#         Camera -> DS90ub953 -> DS90ub954 ->mxc_mipi_csis2.0 -> ISP -> ISP capture (/dev/videoX)

Check the settings with “media-ctl –p”:

Now the video stream is present on “dev/video0” device. The camera is ready for access.

The use of the ISP (Image Signal Processor) of the i.MX8M Plus is described in L-1036e.A0 Using the ISPs on the phyBOARD-Pollux i.MX 8M Plus or L-1036d.A0 Verwendung des ISPs am phyBOARD-Pollux i.MX 8M Plus

Configure the ISP

The i.MX 8M Plus processor includes an ISP (Image Signal Processor) on the chip. An ISP offers various image optimization functions that are carried out independently of the processing unit (CPU) and thus do not burden the limited system resources. Furthermore, the use of an ISP accelerates the integration time, since the associated algorithms do not have to be implemented in a complex manner, and verification can therefore begin immediately.

The use of the ISP (Image Signal Processor) of the i.MX8M Plus is described in L-1036e.A0 Using the ISPs on the phyBOARD-Pollux i.MX 8M Plus or L-1036d.A0 Verwendung des ISPs am phyBOARD-Pollux i.MX 8M Plus

Camera Features Configuration

v4l2-ctl Configuration

To set the various camera functions (e.g. exposure, gain, ...) please use the v4l2-ctl functions. You can get an overview of the existing functions by entering the commands:

• for example: v4l2-ctl -d /dev/v4l-subdev1 –all (list all)
• for example: v4l2-ctl -d /dev/v4l-subdev1 -L (list all detail)

With this control are many features usable, for example exposure. Set one exposure value (if the automatic disable):

• v4l2-ctl -d /dev/dev/v4l-subdev1 --set-ctrl=auto_exposure=1 (set AR0144 AEC off)
• v4l2-ctl -d /dev/dev/v4l-subdev1 --set-ctrl=exposure=800 (set the exposure time for a time, that the sensor need to generate 800 rows)

Camera Register Direct Configuration

To set or get a camera register directly, use the i2c functions in the path …/gstreamer-examples/tools/...

De-Bayering (demosaicking) with NEON CoProcessor

Most CMOS color chips provide the image in the Bayer mosaicing (Bayer raw) format. To get a color image in RGB format, it is necessary to convert the Bayer raw image.

These links detail how this can be done:

• https://en.wikipedia.org/wiki/Bayer_filter
• https://de.wikipedia.org/wiki/Bayer-Sensor

There also exist different algorithms for converting:

• https://en.wikipedia.org/wiki/Demosaicing

The microprocessor includes debayering hardware via ISP. However, the ISP is not supported yet. Therefore, you will have to do the converting via software. For this, you need additional processing power and the framerate will go down. It is better to use the NEON coprocessor of the i.MX 8M Plus. It is available as a GStreamer plugin "bayer2rgbneon" and in sources for use in an own C-program. PHYTEC supports a simple bilinear algorithm. The algorithm is very efficient and converts nearly in real-time.

To use in GStreamer, take the "bayer2rgbneon" plugin. For more information on "bayer2rgbneon" parameters type:

gst-inspect-1.0 bayer2rgbneon

The source is located at:

• https://git.phytec.de/bayer2rgb-neon/

Revision History
